CMM Modular Fixture

Coordinate Measuring Machine Modular Fixture

Modular Fixturing System that is designed for use with Coordinate Measuring Machine to Minimize the Clamping time.Traditional Fixturing Method which often takes longer to setup than to measure the part

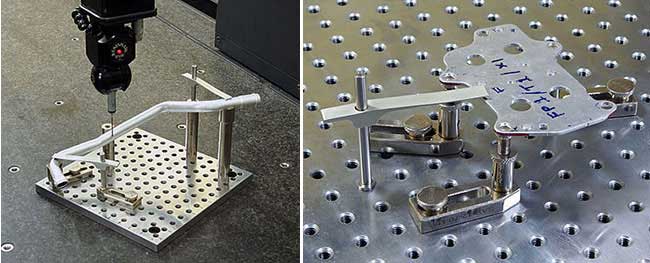

Haviss CMM fixtures are an easy and affordable way to set up any part that is designed for use with Coordinate Measuring Machines (CMMs). They are designed to reduce setup time and can adapt to any application.

Modular Fixturing is quick ,easy to use and flexible enough to hold all irregular shape of different parts . It will decrease the inspection Cost and also will help to improve the accuracy of part inspection.

CMM Part clamping fixtures are more flexiable and easy to use. Provides repetability in Clamping

The Haviss range of CMM fixtures range includes a wide choice base plates and a wide selection of components with M4, M6 or M8 threaded fittings. Base plates are made from cast aluminium or anodised steel to resist wear and tear.

Base plates are available in the following sizes:

200mm x 200mm, 300mm x 300mm, 400mm x 400mm, 500mm x 500mm, 600mm x 600mm

Typical Application

Haviss Modular Fixtures find application in Automotive, Aerospace, Medical, Die and mold industries:
